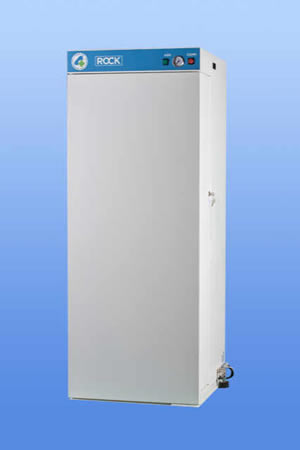

Smart Stations

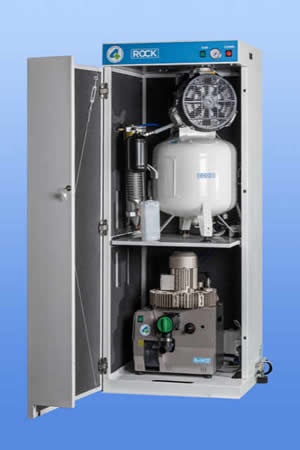

When space is at a premium a Smart Station might just be the solution. Combining the compressor and suction into one cabinet the Smart Station offers solutions for 1 to 4 surgeries.
Both systems are entirely separate and provide for each to be operated individually if required.
Smart Station model for 1-2 surgeries
| Surgeries | Noise dB(A) | Weight kgs | Dimensions L x D x H cm |
|---|---|---|---|
| 1 or 2 | 51 | 115 | 55 x 50 x 136 |
| Compressor | hp | FAD (output) Ltrs/min | Max Pressure | Tank Ltrs | Dryer |
|---|---|---|---|---|---|
| DC2 | 1.5 | 130 | 8.5 | 24 | Yes |
| Suction | hp | g/min | Working Pressure mbar | Max Flow l/min |
|---|---|---|---|---|
| Rain 2 | .75 | 2800/3400 | 170/200 | 2300 |
Smart Station model for 3-4 surgeries
| Surgeries | Noise dB(A) | Weight kgs | Dimensions L x D x H cm |
|---|---|---|---|
| 3 or 4 | 51 | 115 | 55 x 50 x 136 |
| Compressor | hp | FAD (output) Ltrs/min | Max Pressure | Tank Ltrs | Dryer |
|---|---|---|---|---|---|
| DC4 | 2.5 | 225 | 8.5 | 40 | Yes |
| Suction | hp | g/min | Working Pressure mbar | Max Flow l/min |
|---|---|---|---|---|
| Rain 4+ | 1.75 | 0 - 3740 | 200 - 370 | 0 - 2300 |
